Simulating a MS from a VOTable
[7]:
# https://data.csiro.au/collections/domain/casdaSkymap/summary/catalogue/RACS_0730-68A_component_53b/continuum_component
# https://data.csiro.au/domain/casdaObservation/results?dataProducts=%5B%7B%22dataProduct%22%3A%22CATALOGUE%22%7D,%7B%22dataProduct%22%3A%22IMAGE_CUBE%22%7D,%7B%22dataProduct%22%3A%22IMAGE_CUBE_ANCILLARY%22%7D,%7B%22dataProduct%22%3A%22SPECTRUM%22%7D,%7B%22dataProduct%22%3A%22MEASUREMENT_SET%22%7D%5D&facets=%5B%5D&showRejected=false&releasedFilter=released&includeCommensalProjects=false&showFacets=true&coneSearches=%5B%7B%22rightAscension%22%3A%2208%3A16%3A36.828%22,%22declination%22%3A%22-70%3A39%3A55.573%22,%22radius%22%3A2%7D%5D&objectName=J081636-703955
# 2MASX J08161181-7039447
source_name = 'J08161181-7039447'
source_ms = '08161181-7039447'
ms_filename = f'{source_ms}.ms'
model_name = f'{source_ms}.model'
nchan = 48
frequency="1.420GHz"
increment="1MHz"
[2]:
# Clean up
import os
os.system(f"rm *.log *.i{source_ms}.fits")
os.system(f"rm -rf {ms_filename} {model_name}")
rm: cannot remove '*.i08161181-7039447.fits': No such file or directory
[2]:
0
[8]:
from astropy.coordinates import SkyCoord
# Get the coordinates from Sesame
coord = SkyCoord.from_name(source_name)
ra ,dec = coord.to_string('hmsdms').split(" ")
# If you are offline, uncomment this
# ra ,dec = "08h16m36.24s -70d39m55.08s"
print(ra, dec)
direction=f"[{ra}, {dec}, J2000]"
08h16m11.8128s -70d39m44.712s
[9]:
from taitale import taitale_env
env = taitale_env(
image = "csirocass/askapsoft",
tag = "1.17.6-openmpi4"
)
Model the source
[10]:
from taitale.askap import cmodel
# Catalog acquired from CASDA
# https://data.csiro.au/domain/casdaObservation
votablename = "AS110/RACS0830-68A/image.i.SB12486.cont.RACS_0830-68A.linmos.taylor.0.restored.cres.fcor.components.xml"
cmodel(
env=env,
workers=3,
args={
"gsm.database": "votable",
"gsm.file": votablename,
"gsm.ref_freq": "1.420GHz",
"primarybeam": "GaussianPB",
"bunit": "Jy/pixel",
"frequency": frequency,
"increment": increment,
"flux_limit": "10uJy",
"shape": [2048, 2048],
"cellsize": ['2.5arcsec','2.5arcsec'],
"direction": direction,
"nterms": 1,
"stokes": "[I]",
"output": "casa",
"filename": model_name,
}
)
Starting cmodel
Debug: registered context Global=0
Debug: registered context Global=0
Debug: registered context Global=0
cmodel complete

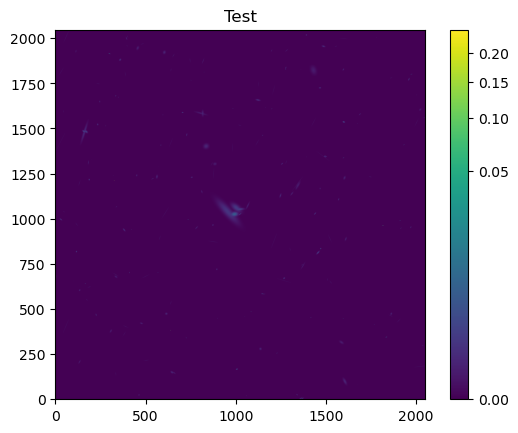

[15]:
import matplotlib.pyplot as plt
from astropy.io import fits
from astropy.wcs import WCS
import matplotlib.colors as mcolors
from casacore.tables import table
tbl = table(model_name)
data=tbl.getcol("map")
data = data[0,0,0,:,:]
# print(type(data), data.shape)
tbl.close()
im = plt.imshow(data, origin='lower', cmap='viridis', norm=mcolors.PowerNorm(0.3))
plt.title("Test")
plt.colorbar(im)
Successful readonly open of default-locked table 08161181-7039447.model: 1 columns, 1 rows
[15]:
<matplotlib.colorbar.Colorbar at 0x7fe82674ce10>
Simulate the Model
[28]:
from taitale.askap import csimulator
import os
os.system(f"rm -rf {ms_filename}")
csimulator(
env=env,
parset="./parsets/csimulator.in",
args={
"dataset": ms_filename,
"sources.names": f"[{source_name}]",
f"sources.{source_name}.direction": direction,
f"sources.{source_name}.model": model_name,
"spws.names": "[TestBand]",
"spws.TestBand": f'[48, {frequency}, 1.0MHz, "XX YY XY YX"]',
"observe.number": 1,
"observe.scan0": f"[{source_name}, TestBand, -2h, 2h]",
},
)
Starting csimulator
Debug: registered context Global=0
csimulator complete
[60]:
from taitale.askap import mslist
mslist(env=env, args=f"--full {ms_filename}", logfile="mslist.txt")
Starting mslist
mslist complete
[61]:
!cat mslist.txt
Debug: registered context Global=0
2025-02-14 07:49:49 INFO Observer: ASKAP simulator Project:
2025-02-14 07:49:49 INFO + Observation: ASKAP36(36 antennas)
2025-02-14 07:49:49 INFO MSMetaData::_computeScanAndSubScanProperties Computing scan and subscan properties...
2025-02-14 07:49:49 INFO Data records: 60480 Total elapsed time = 14400 seconds
2025-02-14 07:49:49 INFO + Observed from 06-Mar-2007/11:32:53.9 to 06-Mar-2007/15:32:53.9 (UTC)
2025-02-14 07:49:49 INFO
2025-02-14 07:49:49 INFO Fields: 1
2025-02-14 07:49:49 INFO + ID Code Name RA Decl Epoch nRows
2025-02-14 07:49:49 INFO + 0 J08161181-7039447 08:16:11.812800 -70.39.44.71200 J2000 60480
2025-02-14 07:49:49 INFO Spectral Windows: (1 unique spectral windows and 1 unique polarization setups)
2025-02-14 07:49:49 INFO + SpwID Name #Chans Frame Ch0(MHz) ChanWid(kHz) TotBW(kHz) CtrFreq(MHz) Corrs
2025-02-14 07:49:49 INFO + 0 TestBand 48 TOPO 1420.000 1000.000 48000.0 1443.5000 XX YY XY YX
2025-02-14 07:49:49 INFO The SOURCE table is absent: see the FIELD table
2025-02-14 07:49:49 INFO + Antennas: 36 'name'='station'
2025-02-14 07:49:49 INFO + ID= 0-4: 'Pad01'='', 'Pad02'='', 'Pad03'='', 'Pad04'='', 'Pad05'='',
2025-02-14 07:49:49 INFO + ID= 5-9: 'Pad06'='', 'Pad07'='', 'Pad08'='', 'Pad09'='', 'Pad10'='',
2025-02-14 07:49:49 INFO + ID= 10-14: 'Pad11'='', 'Pad12'='', 'Pad13'='', 'Pad14'='', 'Pad15'='',
2025-02-14 07:49:49 INFO + ID= 15-19: 'Pad16'='', 'Pad17'='', 'Pad18'='', 'Pad19'='', 'Pad20'='',
2025-02-14 07:49:49 INFO + ID= 20-24: 'Pad21'='', 'Pad22'='', 'Pad23'='', 'Pad24'='', 'Pad25'='',
2025-02-14 07:49:49 INFO + ID= 25-29: 'Pad26'='', 'Pad27'='', 'Pad28'='', 'Pad29'='', 'Pad30'='',
2025-02-14 07:49:49 INFO + ID= 30-34: 'Pad31'='', 'Pad32'='', 'Pad33'='', 'Pad34'='', 'Pad35'='',
2025-02-14 07:49:49 INFO + ID= 35-35: 'Pad36'=''
2025-02-14 07:49:49 INFO The HISTORY table is empty
Imaging the simulation for verification
[36]:
from taitale.askap import imager
image_name = f"image.i.{source_ms}"
imaging_workers = 1
nchanpercore = nchan // imaging_workers
print(f"channels: {nchan}")
print(f"nchanpercore: {nchanpercore}")
print(f"mpi_workers: {imaging_workers}")
# Default parset for Clean used
imager(
env=env,
workers=imaging_workers+1,
parset="./parsets/cimager.in",
args={
"dataset": f"./{ms_filename}",
"Images.Names": image_name,
f"Images.{image_name}.direction": direction,
f"Images.{image_name}.nchan": 1,
f"Images.{image_name}.nterms": 2,
"Images.shape": "[512, 512]",
"Images.cellsize": "['2.5arcsec', '2.5arcsec']",
"nchanpercore": nchanpercore,
"restore": True,
}
)
channels: 48
nchanpercore: 48
mpi_workers: 1
Starting imager
Debug: registered context Global=0
Debug: registered context Global=0
imager complete
Viewing our results
[53]:
# Let's have a look at our image
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
from astropy.io import fits
from astropy.wcs import WCS
%matplotlib inline
files = [
f'image.i.{source_ms}.taylor.0.restored.fits',
f'weights.i.{source_ms}.taylor.0.fits',
]
# Using one of the files to setup WCS projection
hdu = fits.open(files[0])[0]
wcs = WCS(hdu.header, naxis=2)
fig, ax = plt.subplots(1, 2, figsize=(12, 12), subplot_kw=dict(projection=wcs))
for idx in range(2):
file = files[idx]
print(fits.info(file))
hdu = fits.open(file)[0]
if idx==0:
im = ax[idx].imshow(hdu.data[0,0,:,:], origin='lower', cmap='viridis', norm=mcolors.PowerNorm(0.3))
else:
im = ax[idx].imshow(hdu.data[0,0,:,:], origin='lower', cmap='viridis')
ax[idx].set_xlabel('RA')
ax[idx].set_ylabel('Dec')
ax[idx].set_autoscale_on(False)
ax[idx].set_title(files[idx])
# plt.colorbar(im, ax=ax[idx])
plt.show()
Filename: image.i.08161181-7039447.taylor.0.restored.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 64 (512, 512, 1, 1) float32
None
Filename: weights.i.08161181-7039447.taylor.0.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 60 (512, 512, 1, 1) float32
None
[ ]:
