Continuum Source Detection
[1]:
# This is done for keeping the notebook clean, remove this if you are using this notebook
import warnings
warnings.filterwarnings('ignore')
[2]:
# https://data.csiro.au/collections/domain/casdaSkymap/summary/catalogue/RACS_0730-68A_component_53b/continuum_component
# https://data.csiro.au/domain/casdaObservation/results?dataProducts=%5B%7B%22dataProduct%22%3A%22CATALOGUE%22%7D,%7B%22dataProduct%22%3A%22IMAGE_CUBE%22%7D,%7B%22dataProduct%22%3A%22IMAGE_CUBE_ANCILLARY%22%7D,%7B%22dataProduct%22%3A%22SPECTRUM%22%7D,%7B%22dataProduct%22%3A%22MEASUREMENT_SET%22%7D%5D&facets=%5B%5D&showRejected=false&releasedFilter=released&includeCommensalProjects=false&showFacets=true&coneSearches=%5B%7B%22rightAscension%22%3A%2208%3A16%3A36.828%22,%22declination%22%3A%22-70%3A39%3A55.573%22,%22radius%22%3A2%7D%5D&objectName=J081636-703955
# 2MASX J08161181-7039447
SB12486_fits = "AS110/RACS0830-68A/image.i.SB12486.cont.RACS_0830-68A.linmos.taylor.0.restored.fcor.fits"
section_fits = "SB12486_section.fits"
[3]:
# Helper to plot data
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
from astropy.io import fits
from astropy.wcs import WCS
from astropy.coordinates import SkyCoord
from astropy import units as u
import numpy as np
import os
%matplotlib inline
def plot_fits(hdu, gamma=0.3, vmin=0, vmax=None):
wcs = WCS(hdu.header, naxis=2)
plt.figure(figsize=(6, 6))
ax = plt.subplot(111, projection=wcs)
if vmax is not None:
im = ax.imshow(hdu.data[0,0,:,:], origin='lower', cmap='viridis', vmin=vmin, vmax=vmax)
else:
im = ax.imshow(hdu.data[0,0,:,:], origin='lower', cmap='viridis', norm=mcolors.PowerNorm(gamma))
ax.set_xlabel('RA')
ax.set_ylabel('Dec')
ax.set_autoscale_on(False)
ax.set_title("image")
plt.colorbar(im, ax=ax)
plt.tight_layout(pad=3, w_pad=2, h_pad=2)
plt.show()
[4]:
file = SB12486_fits
SB12486_hdu = fits.open(file)[0]
SB12486_data = SB12486_hdu.data
SB12486_data.shape
[4]:
(1, 1, 14533, 14537)
[5]:

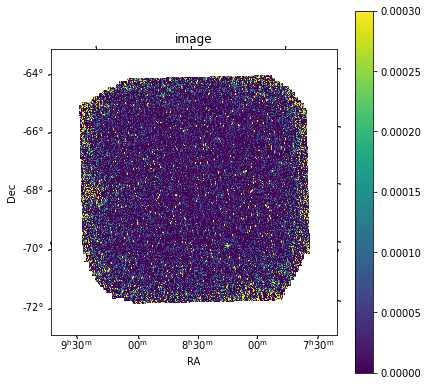

plot_fits(SB12486_hdu, vmin=0, vmax=300e-6)
Extracting a section of the Sky
[6]:
def split(hdu, xst, xen, yst, yen):
ref = SkyCoord(hdu.header["CRVAL1"], hdu.header["CRVAL2"], unit='deg')
ref_px_x, ref_px_y = hdu.header["CRPIX1"], hdu.header["CRPIX2"]
delta_1 = hdu.header["CDELT1"] * u.deg
delta_2 = hdu.header["CDELT2"] * u.deg
w = WCS(hdu.header, naxis=2)
xsize = xen - xst
ysize = yen - yst
coord = w.pixel_to_world(xst, yst)
print(ref.ra.hms, ref.dec.hms)
print(coord.ra.hms, coord.dec.hms)
new_data = hdu.data[:,:,xst:xen,yst:yen]
new_wcs = WCS(naxis=4)
new_wcs.wcs.crpix = [0, 0, 1, 1]
new_wcs.wcs.cunit = ['deg', 'deg', 'Hz', '']
new_wcs.wcs.cdelt = np.array([delta_1.value, delta_2.value, 1, 1])
new_wcs.wcs.crval = [coord.ra.deg, coord.dec.deg, 1, 1]
new_wcs.wcs.ctype = ['RA---SIN', 'DEC--SIN', 'FREQ', 'STOKES']
new_hdu = fits.PrimaryHDU(data=new_data, header=new_wcs.to_header())
return new_hdu
[7]:
fits_file = "image.i.section.fits"
os.system(f"rm {fits_file}")
hdu = SB12486_hdu
ref = SkyCoord(hdu.header["CRVAL1"], hdu.header["CRVAL2"], unit='deg')
ref_x, ref_y = int(hdu.header["CRPIX1"]), int(hdu.header["CRPIX2"])
delta_1 = hdu.header["CDELT1"] * u.deg
delta_2 = hdu.header["CDELT2"] * u.deg
w = WCS(hdu.header, naxis=2)
hdu_split = split(SB12486_hdu, 6223, 8847, 6334, 8958)
hdu_split.writeto(fits_file)
plot_fits(hdu_split, 0.3)
hms_tuple(h=8.0, m=24.0, s=21.576000000005138) hms_tuple(h=-4.0, m=-32.0, s=-33.717333333604955)
hms_tuple(h=8.0, m=38.0, s=32.485454225659964) hms_tuple(h=-4.0, m=-37.0, s=-24.959874028452163)
Source Detection
[ ]:
from taitale import taitale_env
env = taitale_env(
image = "csirocass/askapsoft",
tag = "1.17.6-openmpi4"
)
[8]:
from taitale.askap import selavy
# Distributed 2x2 grid source detection
selavy(
env=env,
workers=5,
args={
"image": fits_file,
"weights": False,
"resultsFile": "selavy-catalog.txt",
"VariableThreshold": False,
"Fitter.doFit": True,
"nsubx": 2,
"nsuby": 2,
}
)
Starting selavy
selavy complete
Verify the VO tables
[9]:
from astropy.io.votable import parse
def read_votable(name):
votable = parse(name)
for resource in votable.resources:
for table in resource.tables:
print(table)
read_votable("selavy-catalog.islands.xml")
col_island_id col_island_name col_n_components ... col_flag_i4 col_comment
-- ...
------------- --------------- ---------------- ... ----------- -----------
island_1 B0822-6853 2 ... 0
island_10 B0834-6745 1 ... 0
island_100 B0831-6904 1 ... 0
island_101 B0829-6806 1 ... 0
island_102 B0824-6730 0 ... 0
island_103 B0837-6848 0 ... 0
island_104 B0828-6859 1 ... 0
island_105 B0829-6845 1 ... 0
island_106 B0830-6818 0 ... 0
island_107 B0822-6855 1 ... 0
... ... ... ... ... ...
island_90 B0837-6816 2 ... 0
island_91 B0819-6800 1 ... 0
island_92 B0830-6835 0 ... 0
island_93 B0822-6751 1 ... 0
island_94 B0834-6835 0 ... 0
island_95 B0836-6900 0 ... 0
island_96 B0821-6752 1 ... 0
island_97 B0828-6813 1 ... 0
island_98 B0819-6857 0 ... 0
island_99 B0827-6747 1 ... 0
Length = 579 rows
[10]:
read_votable("selavy-catalog.components.xml")
col_island_id col_component_id col_component_name ... col_flag_c4 col_comment
-- -- ...
------------- ---------------- ------------------ ... ----------- -----------
island_1 component_1a B0822-6853 ... 0
island_1 component_1b B0822-6853 ... 0
island_2 component_2a B0836-6820 ... 0
island_3 component_3a B0825-6749 ... 1
island_4 component_4a B0838-6844 ... 1
island_5 component_5a B0829-6736 ... 1
island_5 component_5b B0829-6736 ... 1
island_6 component_6a B0826-6733 ... 0
island_6 component_6b B0826-6733 ... 0
island_8 component_8a B0832-6908 ... 0
... ... ... ... ... ...
island_568 component_568a B0822-6851 ... 0
island_569 component_569a B0823-6857 ... 0
island_570 component_570a B0834-6746 ... 0
island_571 component_571a B0825-6849 ... 0
island_572 component_572a B0830-6855 ... 0
island_573 component_573a B0837-6910 ... 0
island_574 component_574a B0837-6846 ... 0
island_575 component_575a B0824-6813 ... 0
island_576 component_576a B0837-6821 ... 0
island_577 component_577a B0828-6739 ... 0
Length = 579 rows
[ ]:
